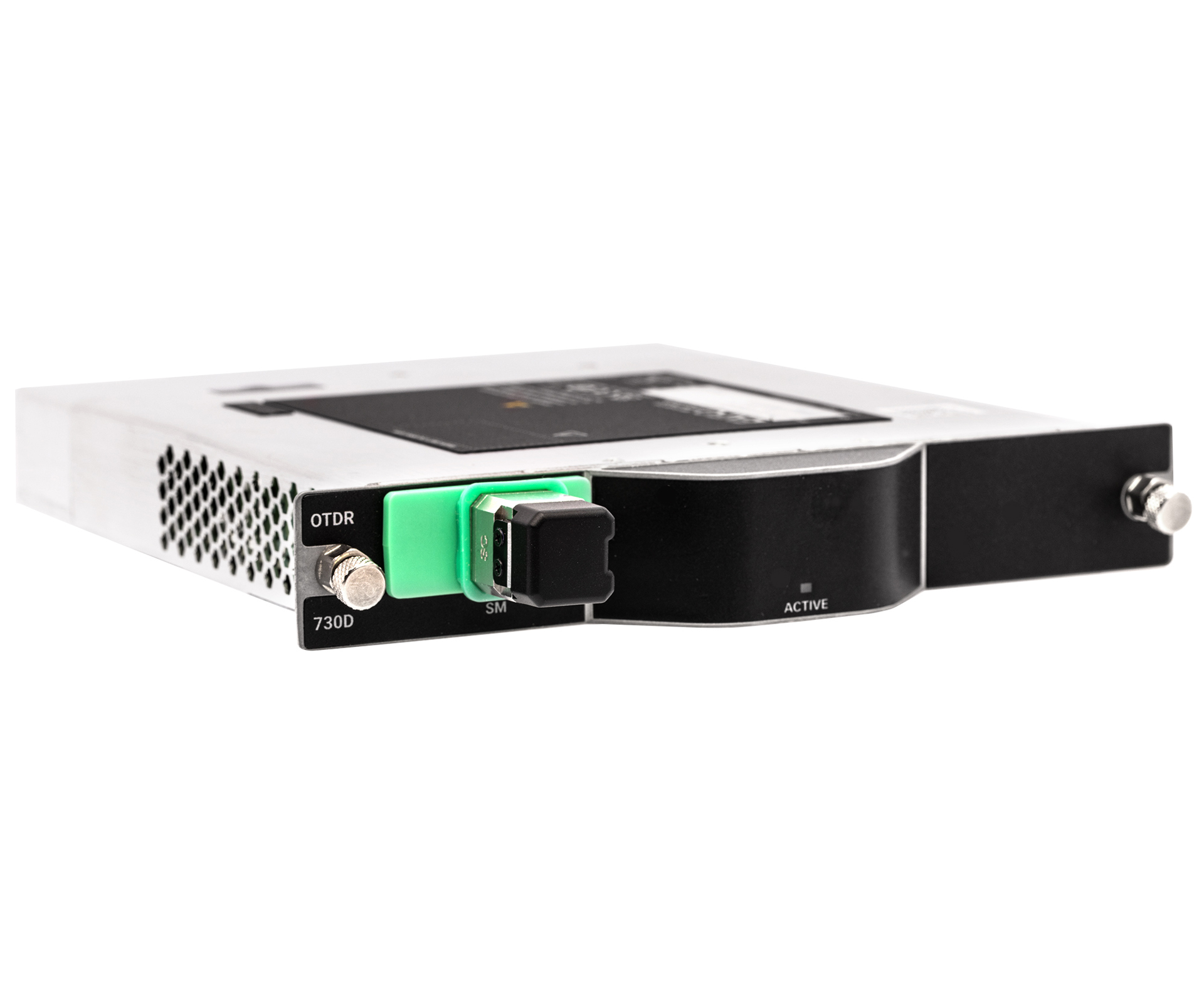

Exfo FTBx-730D PON FTTx/MDU OTDR

Description

The FTBx-730D is the OTDR of choice for field technicians who need to accurately test through splitters and troubleshoot FTTH networks down to the finest details.

The FTBx-730D OTDR is optimised to test through optical splitters and characterise FTTH links. Field technicians can characterise and troubleshoot links 132 km point-to-point (P2P) thanks to its dynamic range of up to 39 dB.

Features

• Dynamic range up to 39 dB for up to 132 km P2P
• Support high port count PON splitters (up to 1×128)
• Short dead zones: event dead zone (EDZ) = 0.5 m; attenuation dead zone (ADZ) = 2.2 m; PON dead zone = 30 m
• FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter
• Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime

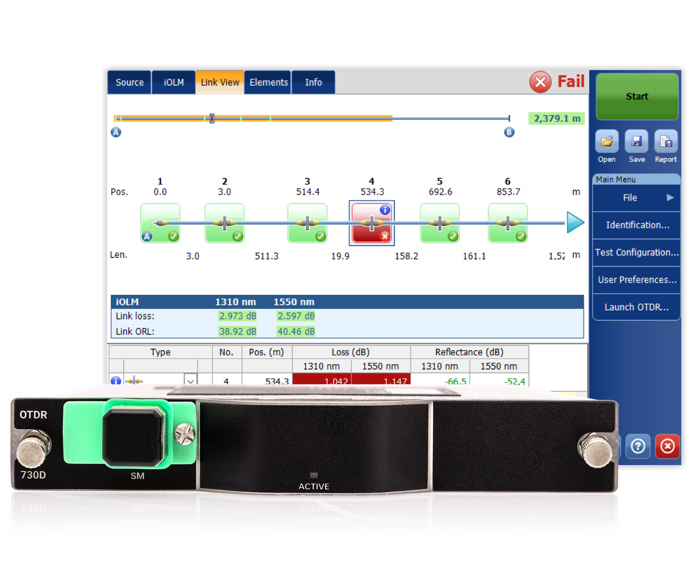

• iOLM-ready: one-touch multiple acquisitions, with clear go/no-go

Applications

• FTTx/PON testing through splitters (up to 1×128)
• FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
• Access network testing (P2P)
• Metro links testing (P2P)
• Live fiber troubleshooting
• Passive optical LAN (POL)
