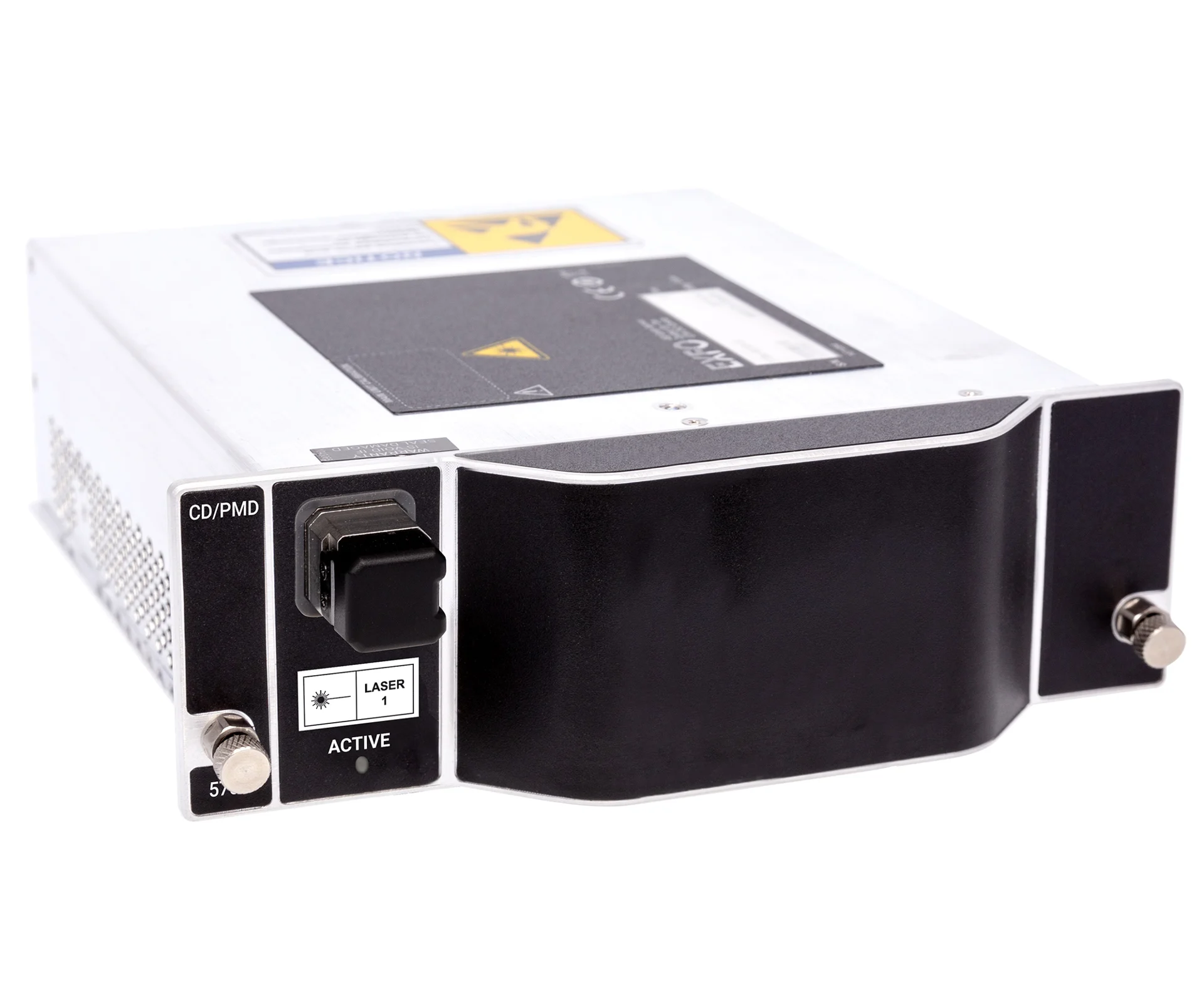

Exfo FTBx-570 Single-ended dispersion analyser

Description

The industry’s only solution for fast single-ended CD/PMD testing for full fiber characterisation. This unique solution is designed to provide accurate and efficient testing of chromatic dispersion (CD) and polarization mode dispersion (PMD) in fiber optic networks.

Features

Single-ended testing efficiency: Conduct CD/PMD tests on multiple links from a single location, minimizing truck rolls and reducing operational expenses.
Rapid and accurate results: Obtain CD and PMD results in under 30 seconds.
Connectivity: Leverage cloud-hosted capabilities for job management and reporting with EXFO Exchange, ensuring operational compliance across teams.
Extensive band coverage: Test O band and SCL bands.
Compact and portable: Housed in the FTB-1 V2 Pro, FTB-2 Pro, and FTB-4 Pro for ultra portability.
Standards compliance: Adhere to industry standards such as ITU-T G.650.3, EIA/TIA FOTP-175B, EIA/TIA FOTP-243, and IEC 61282-9.
Single-button operation: Avoid human errors and obtain accurate results with the click of a button.
User-friendly GUI: Benefit from a fully automated and highly intuitive interface.
