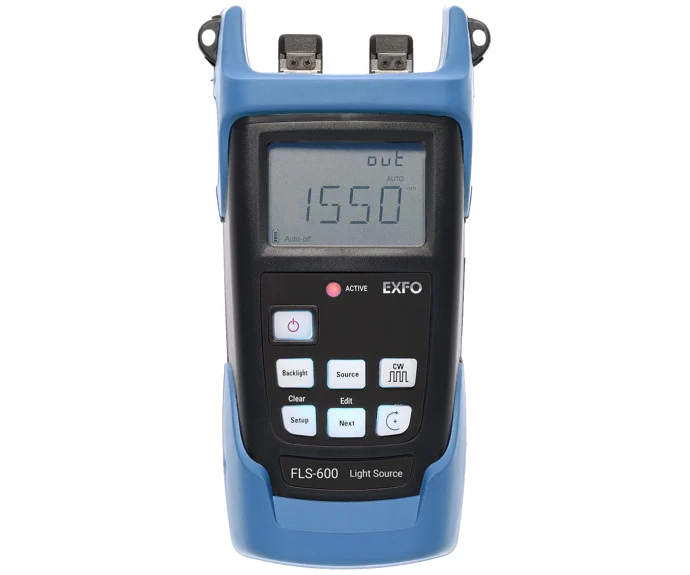

Exfo FLS-600 Light source

Description

Part of EXFO’s 600 handheld series, the FLS-600 Light Source is designed for first-class versatility. Choose among laser, LED models, as well as various wavelength options. What’s more, you can save time by building a list of your “favorite” wavelengths and only sweeping through these wavelengths when testing.

Automatic wavelength switching

Using the FLS-600 in Auto-Switching Mode allows to automatically toggle between available wavelengths. When using this source with a compatible power meter (Optical Power Expert/FOT-600), the latter recognizes the wavelength in use and switches to the proper calibration parameter.

Features

• Up to three singlemode wavelengths (1310 nm, 1550 nm, and 1490 nm or 1625 nm) on a single port, or four wavelengths (850/1300 nm and 1310/1550 nm) on two ports
• Three-year warranty for low cost of ownership
• Error-free, time-saving test features
• Controlled multimode launching output
• EF Ready: use with external launch mode conditioner for EF-compliant multimode results

Applications

• Link-loss characterisation
• LAN/WAN certification
